HP Z400 Workstation has revolutionary new architecture and power that will redefine multi-tasking, the HP Z400 Workstation helps accomplish more with every minute of time and every dollar of investment.
Save 45%

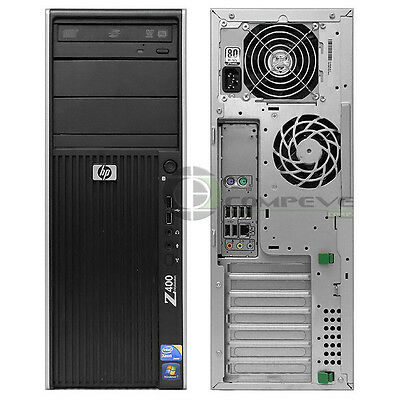

HP Z400 Workstation Computer - Intel Xeon 2.4GHz Dual Core, 4GB RAM, 160GB HDD, DVD RW, Windows 10 Pro 64-bit - Perfect for Graphic Design, Video Editing & CAD Work
Sku: 62185057 in stock
$87.45
$159
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
29 people viewing this product right now!
Guranteed safe checkout
Description
Operating System | Windows 10 Pro 64 bit |
Processor | Intel Xeon 2.4 GHz Dual Core |
Hard Drive | 160GB HDD 3.5" 7200 RPM |
Memory | 4GB DDR3 SDRAM |
Graphics Card | Requires Dedicated Video Card |
Optical Drives | DVD-RW |
Card Reader / Floppy | No |
Audio | Integrated |
Power Supply | 475W Wide Ranging, Active PFC and 85% efficient |
If you prefer to have wireless internet capability, please check our storefront to add a WIFI USB adapter to your order.
Product features
Feature | Description |
Chipset | Intel X58 Express |
Super I/O Controller | SMSC SCH5327, Rev B |
Processor Socket | Single LGA1366 |
Memory Modes | Channel Interleaved |
Memory Speed Supported | 800 MHz, 1066 MHz and 1333 MHz DDR3 |
Processors |
|
Memory |
NOTE: AMO
NOTE: |
Graphics | Professional 2D:
|
Entry 3D:
| |
Mid-range 3D:
| |
High End 3D:
| |
Monitors |
|
Input Devices |
|
Power Supply | 475 W wide-ranging, active Power Factor Correction, 85% Efficient. |
Power supply description
The workstation includes a 475-W 85% efficient power supply to provide power for the workstation. The power supply is compatible with ENERGY STAR requirements.
Power supply voltages
Source voltage | Description |
+3.3V | PCI, PCIe, audio, clocks, chipset, super I/O, BIOS ROM, and onboard logic |
+5.1V | Storage (hard disk drive, optical disk drive, diskette drive), PCI, PCIe, chipset, audio, keyboard/mouse, and USB |
+12 V-CPU | Input to onboard regulator that supplies power to CPU and CPU fan |
+12 V-B | PCI, PCIe, and system fans |
+12 V-D | Storage (hard disk drive, optical disk drive, diskette drive), graphics adapter, and input to onboard regulator that supplies power to memory |
V12N | PCI and serial ports |
+5 V-SB | Sleep circuitry |
Power supply currents
Voltage rail | 475W maximum continuous current |
+12 V-CPU | 17.5A |
+12 V-B | 17.5A |
+12 V-D | 18.0A |
V12N | 0.30A |
+5 V-SB | 2.25A |
3.3V | 15.0A |
5.1V | 21.0A |
CAUTION:Do not exceed 475 watts of total continuous output power.Maximum combined power on 3.3V and 5.1V is 110W.Maximum combined current on +12V(CPU,B,D) is 38A.
Power supply specifications
Item | Description | |
Power supply | 475W Wide Ranging, Active PFC and 85% efficient | |
Operating voltage range | 90 – 269 VAC | |
Rated voltage range | 100–240 VAC | 118 VAC |
Rated line frequency | 50–60 Hz | 400 Hz |
Operating line frequency range | 47–66 Hz | 393–407 Hz |
Rated input current | 10A @ 100-127 VAC 6A @ 200–240 VAC | 10A @ 118 VAC |
Heat dissipation (Configuration and software dependent) | Typical 954 Btu/hr = (240.3 kg-cal/hr) Maximum 1977 Btu/hr = (498.2 kg-cal/hr) | |
Power supply fan | One fan, 92mm x 25mm, variable speed | |
FEMP Standby Power compliant @115V (<2W in S5 – Power Off) | Yes | |
EuP Compliant @230V (<1w in S5 – Power Off) | Yes | |
Built-in Self Test LED | Yes | |
Surge tolerant full ranging power supply (withstands power surges up to 2000V) | Yes | |
Power Consumption in sleep mode (as defined by ENERGY STAR) - Suspend to RAM (S3) (Instantly Available PC) | <6 watts |
Power consumption and heat dissipation
Power consumption and heat dissipation specifications are available for multiple configurations. To review available specifications, see .
To reach zero power consumption, unplug the workstation from the power outlet or use a power strip with an on/off switch. For additional information about power-saving features, see the operating system installation instructions.
This product is in compliance with U.S. Executive Order 13221.
System fans
This workstation includes:
- One rear system fan
- One CPU heatsink fan
- One power supply fan
In addition, an optional front system fan is available for special environments, and some graphics cards include onboard fans.
Resetting the power supply
If an overload triggers the power supply overload protection, power is immediately disconnected.
To reset the power supply:
- Disconnect the power cord from the workstation.
- Determine what caused the overload and fix the problem. For troubleshooting information, see Diagnostics and troubleshooting.
- Reconnect the power cord and restart the workstation.
When you power off the workstation through the operating system, power consumption falls below what is considered low power consumption but does not reach zero. This low power consumption feature extends the life of the power supply.
ENERGY STAR Qualification
The images of the product are stock images and may slightly vary from the actual product you receive. Also, we do our best to be as accurate as possible in our product description and details. However, some information may vary slightly from the standard / stock specifications that we use and provide.
